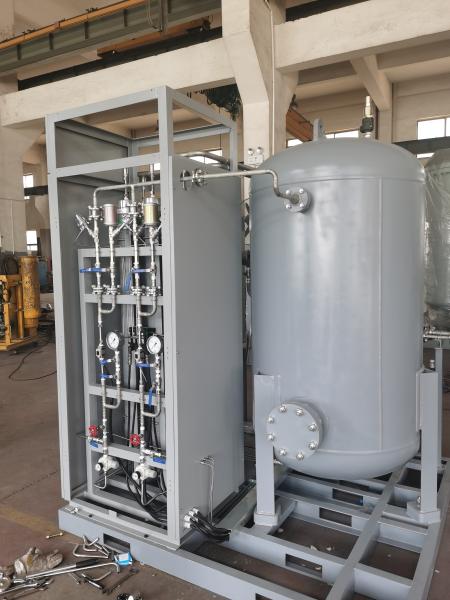

Redundant Membrane nitrogen generator for High availability design.

There have two membrane nitrogen genertaor on a skid, designed for 2*100%.

Any malfunction of one membrane nitrogen production equipment will automatically switch to another nitrogen production operation.

The entire control process is completed by PLC, and PLC redundancy is optional.

Working principle

Generally all gases can permeate through the polymer membrane. The process is that gas molecules are first adsorbed and dissolved on the surface of the high-pressure side of the membrane, then diffuse in the membrane with the help of a concentration gradient, and finally resolved from the low-pressure side of the membrane. The result is Small molecules and highly polar molecules (such as water vapor, oxygen, carbon dioxide, etc.) pass faster and are enriched on the permeate side of the membrane; while large molecules and relatively weak molecules (such as nitrogen, argon, etc.) ) Has a slower passing speed, and is retained on the retention side of the membrane to be enriched to achieve the purpose of separation of the mixed gas. Membrane separation uses the difference in the permeation rate of various gases on the polymer membrane to carry out gas separation. The driving force of separation is the partial pressure difference of the gas on both sides of the membrane, so membrane gas separation has no phase change and does not require Regeneration, it has the advantages of simple equipment, low operation and maintenance costs.

Equipment build: The membrane separation nitrogen generator mainly consists of an air compressor, a cold drying machine, a filter, a membrane separator, a nitrogen buffer tank, etc. The air compressor provides compressed air, while the refrigerated dryer and filter dry and purify the compressed air. The membrane separator is the core component responsible for separating nitrogen and oxygen, and the nitrogen buffer tank is used to store the separated nitrogen.

Datasheet of N2 generators

Equipment features

Efficient and energy-saving: The membrane separation nitrogen generator adopts advanced membrane separation technology, which has a high nitrogen recovery rate and low energy consumption. Compared with traditional nitrogen production methods, membrane separation nitrogen production machines have significant advantages in energy conservation.

Easy to operate: The membrane separation nitrogen generator is easy to operate and can achieve continuous nitrogen production by simply following the equipment requirements. Meanwhile, the equipment has a high degree of automation, which can reduce manual intervention and operational errors.

Green and environmentally friendly: The membrane separation nitrogen generator does not require the use of any chemical agents or additives in the process of producing nitrogen, nor does it produce any pollutants or waste. It is a green and environmentally friendly nitrogen production method.

Widely used: The membrane separation nitrogen generator is suitable for various industrial fields that require high-purity nitrogen, such as chemical industry, electronics, food, medicine, etc. At the same time, different specifications and models of membrane separation nitrogen generators can be provided according to the different needs of users.

GASPU can provide you with various customized purity and yield membrane separation nitrogen generators. If you need them, please contact us.

Suzhou GASPU Gas Technology Co., Ltd. was founded in 2001 in Suzhou Overseas Students Entrepreneurship Park and registered in Suzhou National High Tech Industrial Development Zone. The company has established long-term cooperative relationships with domestic and foreign research and development institutions such as SAES, SEMIGASSYSTEM, BOISTON, AIRTECH, UOP, GARBOTECH, BURKERT, etc., continuously innovating in gas and air purification treatment technologies, and developing leading new technologies and products domestically.

With a group of professional personnel engaged in the research, promotion, and production of pressure swing adsorption technology, and the efforts of all colleagues to explore and adhere to the principle of customer first, GASPU has developed into a professional air separation equipment supplier with a certain scale in China, integrating scientific research and production. It can provide PSA carbon molecular sieve nitrogen production equipment, membrane separation nitrogen production equipment, and ammonia decomposition hydrogen production equipment to a large number of users, Hydrogen purification products, and various gas supply solutions can be provided according to user requirements.

The company has been self-purchasing land in Suzhou High tech Zone since 2003 and owns a professional production base of 8000 square meters for nitrogen generators and ammonia decomposition hydrogen production equipment. The equipment is widely used in industries such as petrochemicals, electronics, pharmaceuticals, food preservation, and new materials, providing overall solutions for industries and fields that require the use of protective atmospheres. Some customers include Ma-steel Hefei, DSM Chemical, BASF Chemical, BP, and CNOOC Zhejiang Wan-Xiang, Jing-Neng Group, Shanghai Electric, China DATANG, State Power Investment Corporation, Shenzhen Foxconn, etc. have stable and safe equipment operation.

Looking forward to GASPU being your better choice!
