An Instrument Air Package Which Capacity Is 90SCFM And Dewpoint Is Below -40℉

We are a professional manufacturer engaged in the design and manufacturing of instrument air packages, with numerous mature and reliable cases. We will provide you with professional and stable instrument air packages. The instrument air packages using "GASPU" technology have been operating stably around the world, it is your better choice.
The production of 90SCFM belongs to small instrument air packages, which integrate components such as air compressors, filters, dryers, control systems, valve pipelines, PA tank, etc., and are designed as a skid for easy user use.

Introduction

The instrument air package mainly consists of air compressor, air tank, filter, dryer, valve, instrument, redundant control sytem, etc.

IA tank is included on skid.

Users only need to connect to the power supply to obtain qualified instrument air.

Datasheet for Instrument air skid

Definition and characteristics:

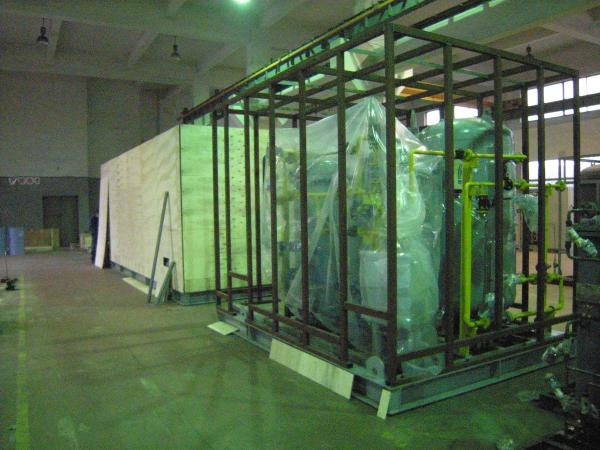

The skid mounted instrument wind skid integrates air compressors, dryers, controllers, valves, pipelines, auxiliary equipment, intermediate connectors, and cables on a single steel structure platform, with only reserved process connection ports, control power supply, and communication interfaces for the overall integration part. The device is assembled on a skid and can be migrated as a whole, making it convenient and flexible.

Advantages:

1. Reduce on-site construction volume: Most of the installation work of the skid mounted equipment is completed in the factory, which can greatly reduce the amount of on-site construction work and shorten the installation cycle of the project.

2. Improve engineering construction efficiency: The installation of fixed equipment on site requires on-site construction personnel to have good professional skills and construction experience, while the integrated supply, assembly, testing, and inspection of skid mounted devices are all completed in the factory, greatly reducing the amount of on-site construction work and improving work efficiency.

3. Ensure the quality of engineering construction: Completing assembly and testing in the factory is beneficial for ensuring installation quality.

4. Easy to relocate and transport: It can be relocated as a whole and has good flexibility.

working principle:

The instrument wind skid is mainly used for purifying and drying compressed air, so that the dew point of compressed air is below -40 ℃, the oil content is below 0.01ppm, and the dust particle size is less than 0.01um.

The ambient air is compressed by an air compressor, cooled by a cooler, and separated from steam and water before being sent to the factory air storage tank to balance the air pressure. Then, it is filtered through multiple filters and deeply dehydrated by a dryer to obtain instrument air.

Application:

Skid mounted instrument air skid is widely used in various fields, such as natural gas liquefaction units, well gas recovery units, decarbonization modular units, sulfur recovery modular units, etc.

The instrument wind skid has the characteristics of high integration, easy installation, short installation time, and easy relocation, and is suitable for on-site liquefaction of natural gas, shale gas, coalbed methane, and other remote gas wells.

Other:

This is a non-standard device that requires users to provide detailed design standards and data sheets for design.

Suzhou GASPU Gas Technology Co., Ltd. was founded in 2001 in Suzhou Overseas Students Entrepreneurship Park and registered in Suzhou National High Tech Industrial Development Zone. The company has established long-term cooperative relationships with domestic and foreign research and development institutions such as SAES, SEMIGASSYSTEM, BOISTON, AIRTECH, UOP, GARBOTECH, BURKERT, etc., continuously innovating in gas and air purification treatment technologies, and developing leading new technologies and products domestically.

With a group of professional personnel engaged in the research, promotion, and production of pressure swing adsorption technology, and the efforts of all colleagues to explore and adhere to the principle of customer first, GASPU has developed into a professional air separation equipment supplier with a certain scale in China, integrating scientific research and production. It can provide PSA carbon molecular sieve nitrogen production equipment, membrane separation nitrogen production equipment, and ammonia decomposition hydrogen production equipment to a large number of users, Hydrogen purification products, and various gas supply solutions can be provided according to user requirements.

The company has been self-purchasing land in Suzhou High tech Zone since 2003 and owns a professional production base of 8000 square meters for nitrogen generators and ammonia decomposition hydrogen production equipment. The equipment is widely used in industries such as petrochemicals, electronics, pharmaceuticals, food preservation, and new materials, providing overall solutions for industries and fields that require the use of protective atmospheres. Some customers include Ma-steel Hefei, DSM Chemical, BASF Chemical, BP, and CNOOC Zhejiang Wan-Xiang, Jing-Neng Group, Shanghai Electric, China DATANG, State Power Investment Corporation, Shenzhen Foxconn, etc. have stable and safe equipment operation.

Looking forward to GASPU being your better choice!
